Standalone VGA Grid User Guide
Verify date and time settings
The current date, time, time zone, and synchronized time protocol settings are shown when the Date and Time configuration page is loaded in the Standalone VGA Grid Admin panel.
To view settings on the date and time configuration page:
- Login to the Admin panel as admin. See Connect to the Admin panel.

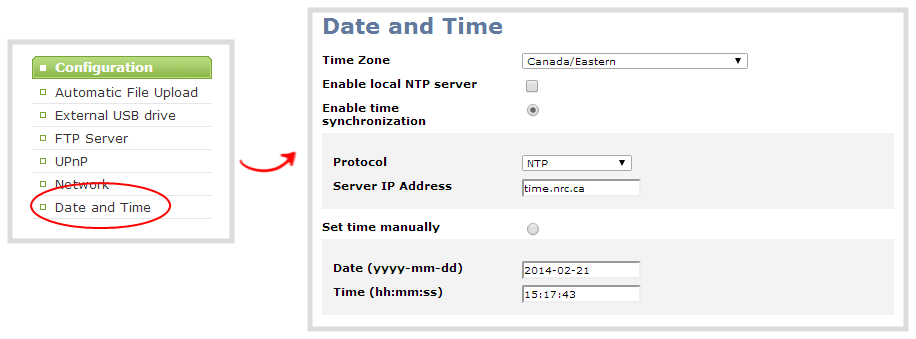

- Select the Date and Time link in the Configuration menu; the date and time configuration page opens and the following information is displayed:
The date and time configuration page also indicates whether the
The following table describes the date and time configuration fields.
Date and Time Options
| Label | Description/Options |
|---|---|
| Time Zone | The currently selected time zone. |
| Enable time synchronization | Whether or not a time synchronization protocol is being used for setting time. (If not selected, time is set manually.) |
| Protocol | The time synchronization protocol. |
| Service IP Address | The time synchronization server address. |
| Set time manually | Whether or not time is set manually. (If time is not being set manually, a time synchronization protocol is used.) |
| Date | The current date. (This is the current date even if the radio button Set time manually is not selected.) |
| Time | The current time. (This is the current time even if the radio button Set time manually is not selected.) |
