Front, back and bottom views
In the front, your LUMiO 12x has its camera lens, the camera base, the IR receiver panel and the power indicator light. The rear panel features a series of output ports and a power input port, and the bottom of your LUMiO 12x has a dial switch and a few mounting installation holes. See below for a complete list of LUMiO 12x's physical features.

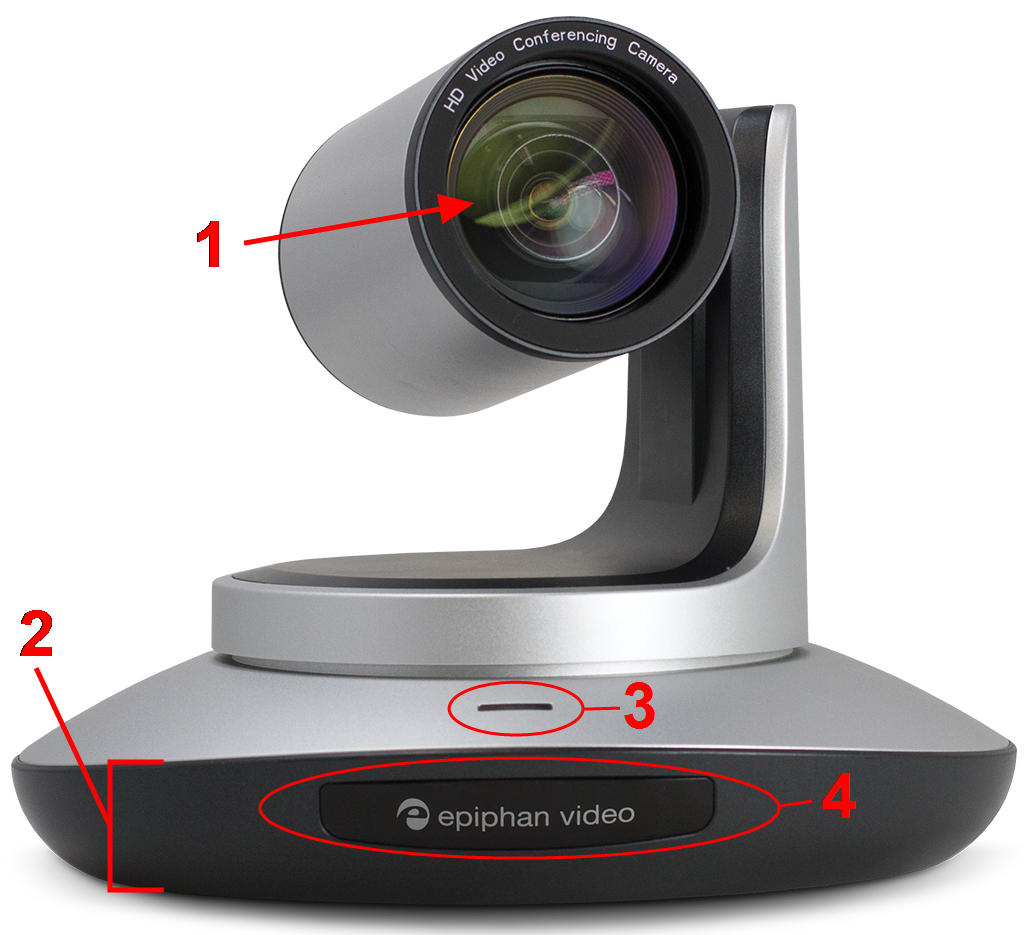

LUMiO 12x front view descriptions
| Label | Name | Description |
|---|---|---|
| 1 | Camera lens | Captures video content. |
| 2 | Camera base | Supports and balances the weight of the camera. |
| 3 | Indicator light | Displays a colored light to indicate the status of your LUMiO 12x and its response to commands from the remote control. Blue light (solid): LUMiO 12x is powered on. Red light (flashing continuously): LUMiO 12x is receiving commands from the remote control. Purple light (one quick flash): A setting or mode is changed via the remote control. |
| 4 | IR receiver panel | Receives signals from the remote control. |

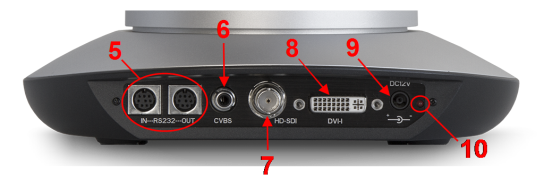

LUMiO 12x back view descriptions
| Label | Name | Description |
|---|---|---|
| 5 | VISCA IN/OUT (RS-232) ports | RS-232 serial port connections. Allows issuing of RS-232 commands using VISCA/PELCO-D/PELCO-P protocols. |
| 6 | CVBS output port | Not supported. |
| 7 | 3G-SDI output port | Outputs SDI video signals from LUMiO 12x (3G-SDI cable not included with purchase). |
| DVI-I (HDMI) output port | Outputs DVI-I video signals (and HDMI with adapter) from LUMiO 12x (cable/adapter not included with purchase). |
| 9 | 12V DC power input port | Connects to the power supply to provide power to your LUMiO 12x. |
| 10 | Power indicator light | Displays a red light to indicate your LUMiO 12x is plugged in and receiving power. |

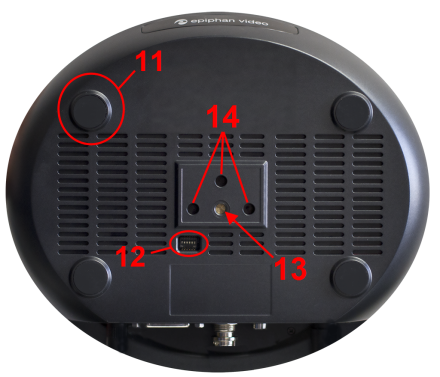

LUMiO 12x bottom view descriptions
| Label | Name | Description |
|---|---|---|
| 11 | Rubber pads (x4) | Lightly adheres to most flat surfaces to ensure your LUMiO 12x stays in place. |
| 12 | DIP switch | Unused. |
| 13 | Tripod mount hole | Tripod mounting connection point (accepts a 1/4"-20 UNC bolt). |
| 14 | Additional mount holes | Connection points for tripod alignment pins. |
