Using the touch screen

The LiveScrypt device's front panel includes a 7 inch touch screen for confidence monitoring, configuration, and operation. Simply tap and swipe to select buttons and navigate menus.

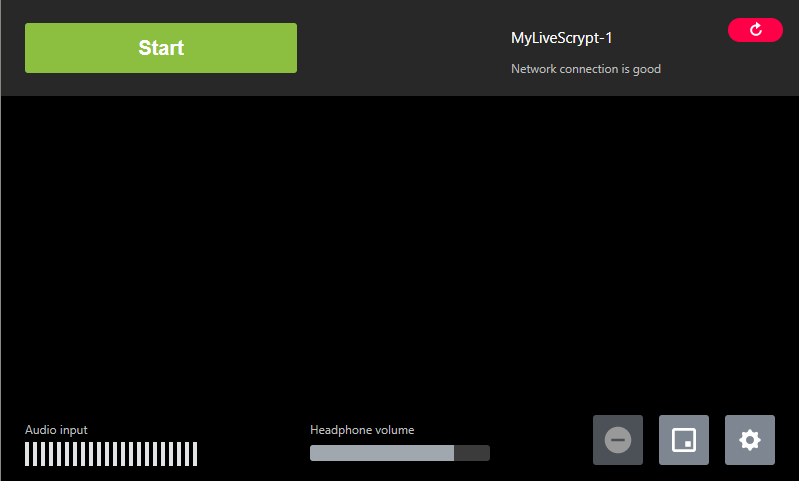

Control icons and a VU meter appear along the bottom of the touch screen, and a header bar with additional buttons and information like the name of the device appears along the top.

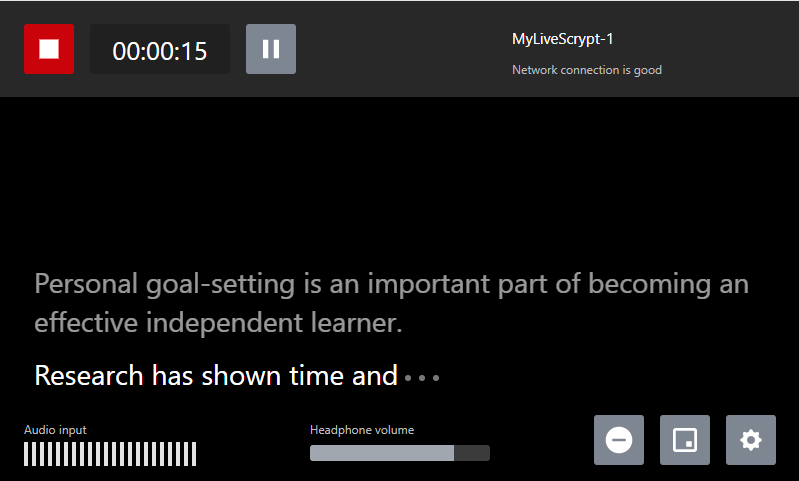

Transcriptions scroll upwards from the bottom of the screen by default. The active phrase is highlighted.

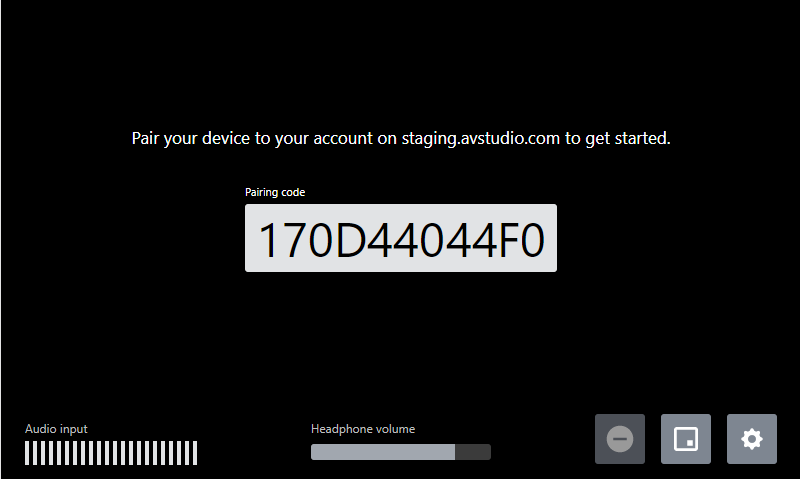

The display area can show the pairing code, transcriptions, menus, the QR code, and messages.

The touch screen is capacitive. Use only your finger or a specially designed soft-tipped capacitive stylus. Pressing too hard or using something other than your fingertip or capacitive stylus can damage the screen.

Description of controls and icons

A headphone volume slider and VU meter appear along the bottom of the touch screen. For more information, see Monitor audio.
