Rename a video output port

Using the Admin panel (, you can easily change the video output port default name to something more suitable. For example, Projector Output or Confidence Monitor.

Change a video output port name using the Admin panel

  1. Login to the Admin panel as admin, see Connect to the Admin panel.
  1. From the Output ports menu, click the video output port. The video output port configuration page opens.

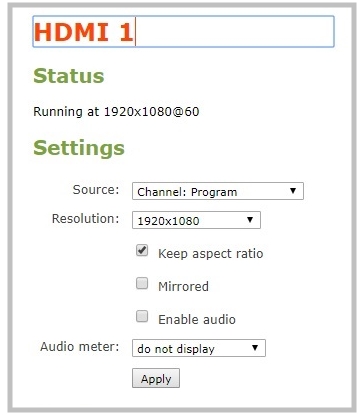

  2. Select the video output port name at the top of the page and enter a new name using your keyboard. The text turns red when it's selected for editing.

  3. Press Enter using your keyboard to save the changes.

You must press Enter to save the new name. The Apply button does not save the source name change.
