Install and format a SATA M.2 2280 SSD for Pearl Mini

You can install a user-supplied SATA M.2 2280 SSD for storing recorded video. Pearl Mini automatically formats the SSD using the EXT4 format for its Linux-based operating system the first time you power it on after installation. Please be patient while the formatting completes.

When you install a SATA M.2 SSD, Pearl Mini no longer detects the SD card slot and the SD card option is removed from the Admin panel's Configuration menu. For more information about using different storage mediums and recommendations, see SD card and SATA M.2 2280 SSD storage.

Any existing content on the SSD is lost when the SSD is formatted.

Only Pearl Mini purchased after June 1st, 2024 are eligible for user to install SATA M.2 drive. Installing a SATA M.2 driver in older Pearl Mini will damage the device.

Before you begin

Gather the tools you need:

  • #1 Phillips screwdriver

  • Appropriate screwdriver that is appropriate for a screw of size M3x.0.5

  • (Optional) a pair of tweezers

Install and format the SATA M.2 2280 SSD

  1. Disconnect the power cable and ensure the Pearl Mini is powered off.

    2. Permanent damage to the SSD and/or Pearl Mini can occur if you install, remove, or replace the SSD while the device is powered on.

  2. On a clean and level surface, turn Pearl Mini over to expose the bottom panel.
  3. Use a #1 Phillips screwdriver to remove the SSD expansion slot cover plate. Set aside for later.

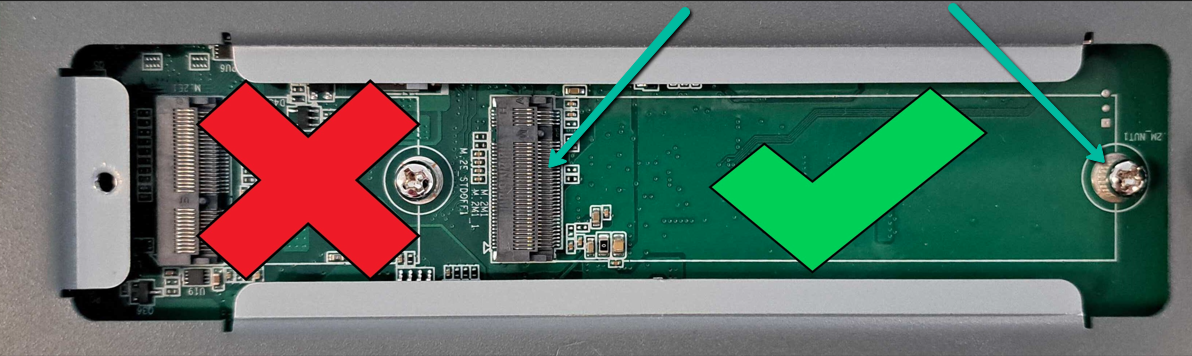

  4. Use a #2 Phillips screwdriver (if present)to remove the screw that's in the post farthest away from the M.2 socket. Set aside for later.

  5. Hold the SSD by the edges and insert firmly into the M.2 socket at approximately a 30° angle. Make sure you align the key notch in the SSD with the notch in the M.2 socket.
  6. Use one hand to gently press and hold the SSD down so that it rests atop the post. Align the notch on the SSD with the post hole.
  7. With your other hand, use a screwdriver appropriate for a screw of size M3x.0.5 to reinstall the post screw and secure the SSD in place.

    8. TIP: Use the tweezers to pick up the screw if it falls behind the SSD.

  8. Reinstall the SSD slot cover plate and power up Pearl Mini.

The SSD is formatted automatically the first time you power on. Please be patient while formatting completes. The amount of time it takes to format depends on the capacity of the SSD. You must wait for the formatting to finish before recording video to the SSD.

Powering off Pearl Mini while the SSD is formatting could damage or corrupt the SSD.
