Choose the display view

You can quickly change what people see on the output display using the touch screen, web interface, or Epiphan Cloud. For instructions on how to access the web interface and Epiphan Cloud, see User interfaces.

The display options are:

  • None: A plain black screen with the LiveScrypt logo displays.
  • Text: The live transcription displays full screen when you start transcription. The transcription appears only as speech is detected.
  • Text + QR: The live transcription displays along with the QR code when you start transcription. The transcription appears only as speech is detected.
  • QR Code: A full screen QR code displays when you start transcription.

To make other visual changes, like changing the color of the background or the font size, see Transcription options.

To choose the display view:

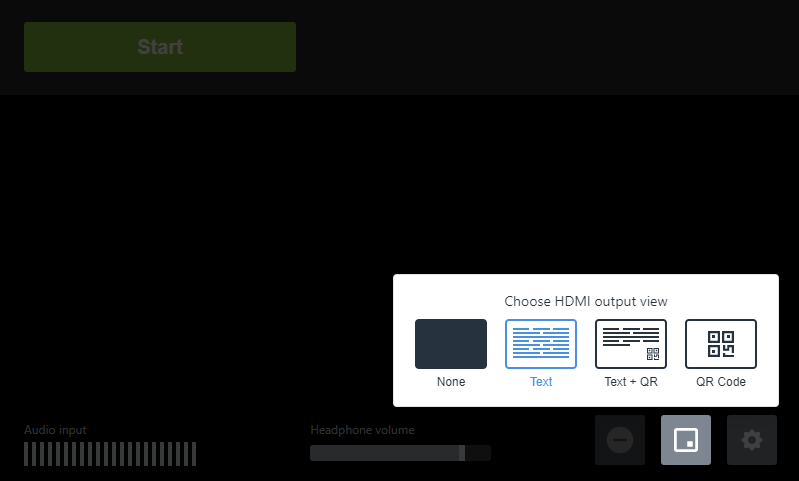

  1. Using the touch screen or web interface, tap the Display view icon and choose the view you want to display. The selected view is highlighted in blue.

  2. Using Epiphan Cloud, do the following:
    1. Select the LiveScrypt devices icon in the side navigation panel, and then select a LiveScrypt device to open the device Settings.

      2. You can also open the LiveScrypt device settings page from the Devices Dashboard when you click the LiveScrypt device name or click the three dots in the row for the LiveScrypt device and select Settings.

    2. From the Settings, select Output. The Output menu opens.

    3. In the Layout field, select a layout from the drop-down menu.
