About your LiveScrypt device

This section will help you get oriented with your LiveScrypt device. For the full product specifications, see Specifications

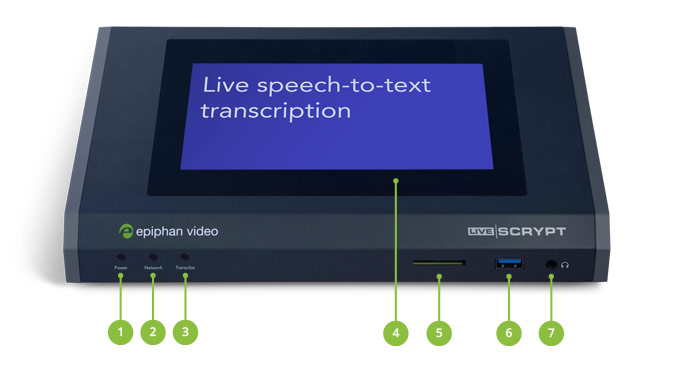

LiveScrypt front panel descriptions

Label	Name	Description
	Power light	Glows when the LiveScrypt is powered on.
	Network light	Glows when the LiveScrypt has network connectivity.
	Transcribe light	Glows when LiveScrypt is transcribing.
	Touch screen front panel display	Used for confidence monitoring, configuration, and for authentication using a 4-digit PIN (if enabled).
	SD card slot	Unused
	USB 3.0 port	Unused. Do not connect a web camera or USB microphone to this port.
	3.5 mm audio output jack	Audio headphone jack.

Do not insert objects in to the two, pin-sized holes that are located beside the LEDs.

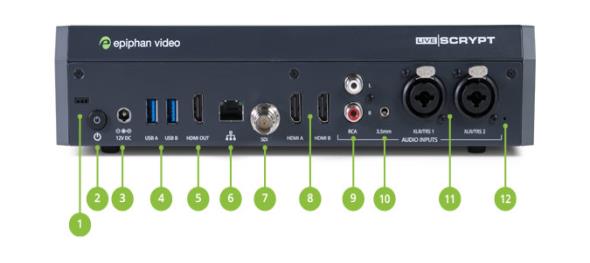

LiveScrypt back panel descriptions

Label	Name	Description
	Lock	Allows LiveScrypt to be locked to a desk or surface using a laptop lock cable.
	Power button	Press to toggle LiveScrypt on and off. If a software shutdown is performed when the toggle switch is in the on position, double press the power button to turn on LiveScrypt.
	Power jack	Plug the power supply in here. The port requires a 12 V DC power source (center-positive). Always use the provided power supply.
	USB 3.0 ports	Connect a USB web camera (UVC) with embedded audio or a USB (UAC) audio source.
	HDMI output port	Connect an HDMI monitor or display device, see Connect an external display for details.
	RJ-45 Ethernet	Auto-sensing gigabit Ethernet 10/100/1000 Base-T network port, see Connect the network and power on.
	SDI in	Connect up to 3G SDI signals for LiveScrypt to use the embedded audio.
	HDMI in	Connect HDMI and DVI signals (using an adapter) for LiveScrypt to use the embedded audio.
	RCA audio in	RCA consumer line-level mono audio pair, see Audio inputs.
	3.5 mm audio in	Stereo plug for mic-level passive or active stereo electret microphones.
	XLR/TRS combo jacks	Two mono XLR /TRS combo jacks. Two XLR mic-level (balanced) Two TRS ¼" professional line-level, +4 dBu (balanced/unbalanced)
	Phantom power light	Glows when 48 V phantom power is enabled. Phantom power is applied to both XLR audio input ports when enabled, see Enable or disable phantom power. WARNING: Connecting devices that are not designed for phantom power when phantom power is enabled for the two XLR ports can seriously damage those devices. Always check the phantom power LED before connecting devices to the XLR ports.
