What's in the box?

The DVI2PCIe Duo package includes the following

1. DVI2PCIe Duo PCIe capture card (read more, Physical attributes)
2. One 3G compliant SDI cable
3. One DVI-I cable
4. One VGA to DVI cable
5. One HDMI to DVI adapter
6. One regular-height bracket
7. One low-profile bracket

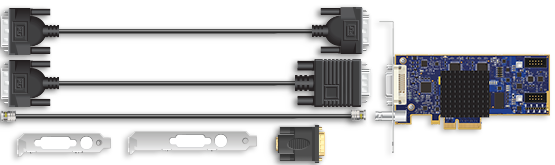

Description of included cables (images for identification only, color and appearance may vary)

Image	Name	Description
	SDI cable	Connects SDI sources the video grabber.
	DVI-I cable	Connects DVI sources to the video grabber.
	VGA to DVI cable	Connects VGA (or Component, if used with a converter) signals to the video grabber.
	HDMI to DVI adapter	Connects HDMI sources to the DVI-I cable for connection to the video grabber.
	Low profile bracket	For use with low-profile cases. Connect the capture card to this end bracket.
	Full height bracket	For use with regular-height cases. Attach the capture card to this end bracket.
